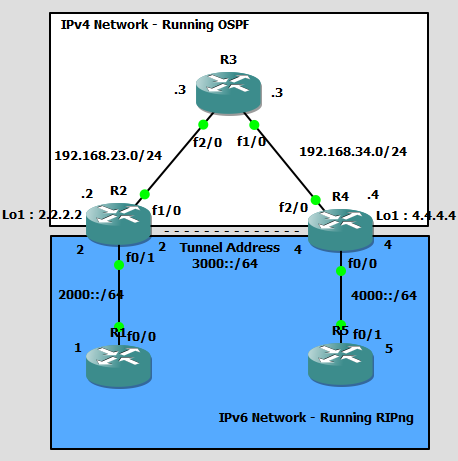

Goal : R1 (IPv6 2000::1) is able to ping R5 (IPv6 4000::5) and vice versa. IPv6 Network using RIP as routing protocol and IPv4 using OSPF. No direct link between R2 & R4, using tunnel interface instead.
Scenario :
- Create IPv4 & IPv6 addresses on each router as picture above
- No need to config IPv6 in R3 & there is no directly connected link between R2 & R4
- Create OSPFv2 and advertise IPv4 network address in R2, R3, R4
- Create tunnel interface mode ipv6ip (default mode is GRE) in R2 & R4,
- Tunnel source is Lo1 for R2 & R4, and make sure tunnel destination addresss is reachable.
- All RIPng routers should reachable by each other.
- Verify : show ipv6 route, test ping / trace IPv6 address from R1 to R5 and reverse
Configuration :
- OSPF Config R2,R3,R4
R2#sh run | sec router
router ospf 1
log-adjacency-changes
network 2.2.2.0 0.0.0.255 area 0
network 192.168.23.0 0.0.0.255 area 0
R3#sh run | sec router
router ospf 1
log-adjacency-changes
network 192.168.23.0 0.0.0.255 area 0
network 192.168.34.0 0.0.0.255 area 0
R4#sh run | sec router
router ospf 1
log-adjacency-changes
network 4.4.4.0 0.0.0.255 area 0
network 192.168.34.0 0.0.0.255 area 0
- IPv6 & RIPng R1,R2,R4,R5
R1#
ipv6 router rip RIPNG
interface FastEthernet0/0
no ip address
duplex auto
speed auto
ipv6 address 2000::1/64
ipv6 rip RIPNG enable
R2#
ipv6 router rip RIPNG
interface FastEthernet0/1
no ip address
duplex auto
speed auto
ipv6 address 2000::2/64
ipv6 rip RIPNG enable
interface FastEthernet1/0
ip address 192.168.23.2 255.255.255.0
duplex auto
speed auto
end
interface Loopback1
ip address 2.2.2.2 255.255.255.0
ipv6 rip RIPNG enable
interface Tunnel0
no ip address
ipv6 address 3000::2/64
ipv6 rip RIPNG enable
tunnel source Loopback1
tunnel destination 4.4.4.4
tunnel mode ipv6ip
end
R4#
ipv6 router rip RIPNG
interface FastEthernet0/0
no ip address
duplex auto
speed auto
ipv6 address 4000::4/64
ipv6 rip RIPNG enable
end
interface FastEthernet2/0
ip address 192.168.34.4 255.255.255.0
duplex auto
speed auto
end
interface Loopback1
ip address 4.4.4.4 255.255.255.0
ipv6 rip RIPNG enable
end
interface Tunnel0
no ip address
ipv6 address 3000::4/64
ipv6 rip RIPNG enable
tunnel source Loopback1
tunnel destination 2.2.2.2
tunnel mode ipv6ip
end
R5#
ipv6 router rip RIPNG
interface FastEthernet0/1
no ip address
duplex auto
speed auto
ipv6 address 4000::5/64
ipv6 rip RIPNG enable
end
Verify:
